Continuous Baler

Continuous Baler

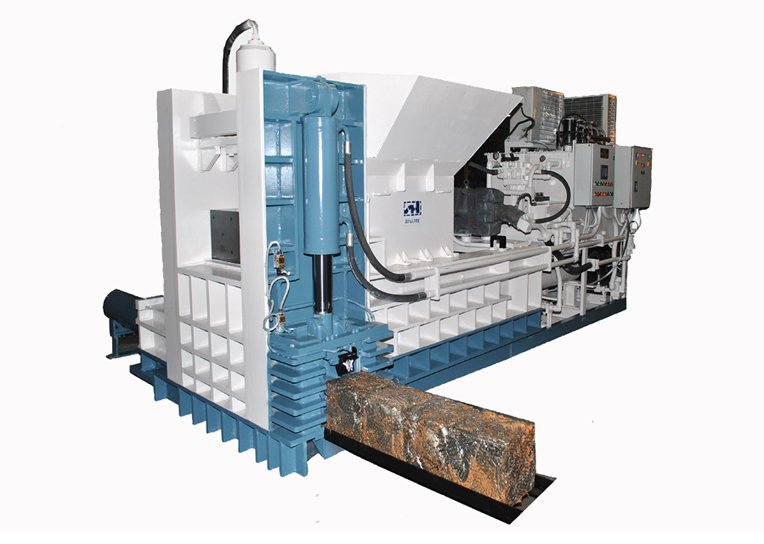

The continuous balers built by Advance Hydrau Tech are used to process the metal scrap in fully automated mode with continuous feeding, baling, and ejection. These are best suited for homogenous metal scraps like UBCs (Used beverage cans), CRC, car body scrap, white goods, and other such materials. To give our customers bales with the highest density and excellent results, our hydraulic baling press has a triple action mechanism.The name of the baler is derived from the continuous feed it is provided with.The metal scrap is fed continuously into the baler through a magnet, grab crane, or a conveyor. The scrap is compacted from three sides just like a triple compression baler or a three ram baler.


  • Share Via

The triple action continuous metal baler offers benefits of short cycle time and high-density bales. The high-density bales offer tremendous efficiency in the melting process, therefore, recycling units and furnaces increase their yield and thus recover more pure metal. Continuous baler finds its application mostly in industries where metal scrap is generated constantly and in big quantities such as automotive industry, big furnaces, or melting units and industrial stamping press lines.



  • Low overall operating cost
  • High productivity
  • Super high-density bales
  • Weight of the bales can be programmed and controlled
  • Increased speed of movements
  • Lower cycle times through the use of high-pressure pumps
  • Low energy consumption
  • Easy installation




  • Robust design
  • Low maintenance requirements
  • Easy operation with multi-display PLC-control panel
  • HARDOX material is used for long life of compression chamber walls
  • Bale length and density can be changed as per customer’s needs
  • After-sales on-demand service
  • Automatic lubrication system
Model Units CB 8x8 CB 10x10 CB 12x12
Bale Size inches 8x8 10x10 12x12
Bale Weight (MS) Kg 20-30 30-40 50-70
Bale Weight (Aluminium) Kg 10-15 10-18 15-30
Productivity bales/ hour 70-80 70-80 70-80
Cycle Time (seconds) seconds 40-45 40-45 45-50


  • Air radiator for oil cooling
  • Feeding Hopper
  • Online Oil Filteration System
  • Wireless Remoter


* Specifications are indicative and are subject to change as per customer’s requirement and technical advancements.
* Accessories shown in the image are not necessary to form part of the actual machine.
* All dimensions, weights and cycle time mentioned are approximate.
* Output depends on the type of the scrap material fed, feed rate and operator skills.


How do I decide the model of the machine that I need?

Experts from Advance HydrauTech will guide you in choosing the machine based on your metal scrap processing requirements. The quantity of scrap, scrap material being used, space available and your budget, everything would be taken into consideration by our experts to help you get the best results out of your recycling process.

Multiple models of our balers are available to cater to different types of customer requirements. No matter which one you choose, the highest efficiency and reliability is guaranteed.


What are the different types of scrap that can be processed?

Nearly all types of ferrous and non-ferrous metal scrap can be processed by the balers manufactured by Advance Hydrau Tech. Whether it is sheet metal scrap, car bodies, skeletal metal scrap, pipe, copper tubing, white goods, scrap electronics, aluminum scrap, copper scrap – balers manufactured by us can process anything.


What all do I need to install the machines?

Our team of experts will educate you regarding all minimal prerequisites for installing our balers.

What are the service requirements of the machine?

To ensure safe, correct and up-to-date operation, annual maintenance is required. Our machines will be serviced by our technicians as and when required. Our machines have a long life. Some of our machines installed in the 1970s are still serviced by us.


How much would the machine, its installation, and training cost me?

An Advance Hydrau-Tech consultant will inform you of the costs involved with the installation of the baler you require. It’s our priority to ensure that you get the best return on investment possible.

What are all the skills required to operate a baler manufactured by Advance Hydrau-Tech?
The skills required to operate an Advance Hydrau-Tech baler are minimal. Our machines are easy to operate. Experts from our team will ensure that your key employees are trained in and informed of the workings of our machine. Since our training is simple and quick, anyone can be trained in operating an Advance HydrauTech machine.
