Continuous Shear

Continuous Shear

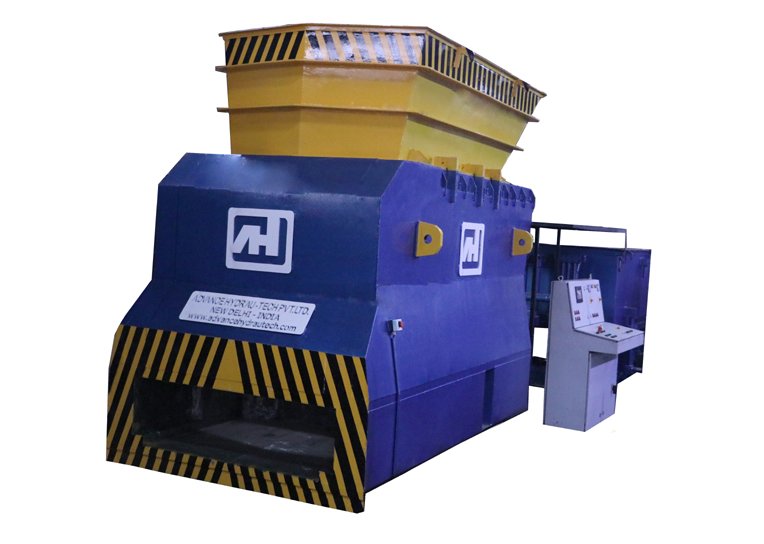

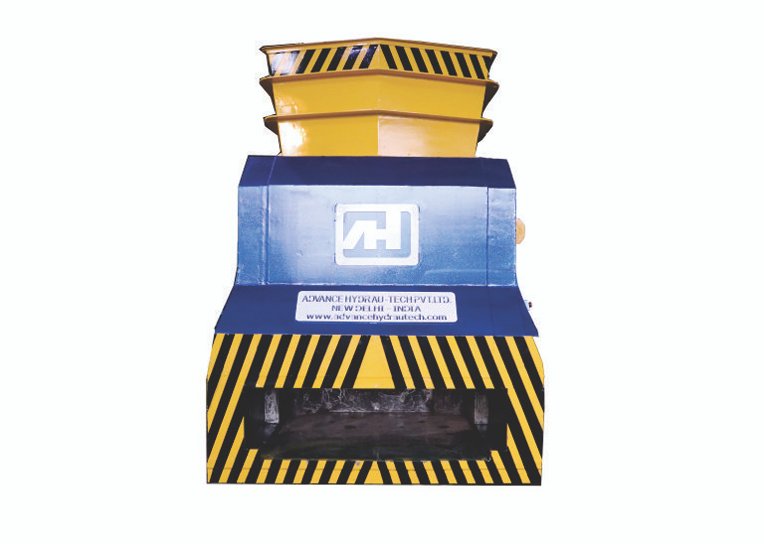

Advance Hydrau Tech’s continuous shears can process a wide variety of ferrous and non-ferrous metal scrap. Be it sheet metal scrap, automobile scrap, car/ ELV (End of Life Vehicles) auto bodies, pipe, and selected HMS – our continuous shears are ideal for processing all of them.Our horizontally operating continuous shearing machine with pre-compression box has been developed to complement box shears(or inclined shears) to suit the needs of scrap processors processing upto 15 tonnes per hour. Scrap is continually fed into the loading chamber throughout the shearing cycle. The horizontally moving compressing unit presses the material to be processed which then falls into the shearing chamber. The material is further cut by the blades mounted on the front of the shear.



Our continuous shearing machine is easy to install and operate.

  • Share Via

Features:

  • Continuous loading of feed



  • Automatic operation



  • Production capacity of up to 15 tonnes per hour



  • Compact and requires a small space to operate



  • HARDOX is used as wear resistant plates



  • Blades are made of highest grade of alloyed steel



  • No civil foundation required except levelled firm ground
Model Units AHCSM 250 AHCSM 400 AHCSM 600
Shearing Force tons 125x2 200 x 2 300 x 2
Clamping Force tons 55x2 75 x 2 75 x 2
Shearing Throat mm 300x1000 400x1400 400x1600
Total Width mm 1700 2100 2300
Total Height mm 3000 3400 3600
Total Length mm 7000 8000 9000
Production tons/hr 4-6 6-9 9-14
Cutting Capacity (MS)
Solid Round mm 50 90 90
Solid Flat mm 30x500 30 x 850 30 x 850



* Specifications are indicative and are subject to change as per customer’s requirement and technical advancements.
* Accessories shown in the image are not necessary to form part of the actual machine.
* All dimensions, weights and cycle time mentioned are approximate.
* Output depends on the type of the scrap material fed, feed rate and operator skills.



How do I decide the model of the machine that I need?

Experts from Advance HydrauTech will guide you in choosing the machine based on your metal scrap processing requirements. The quantity of scrap, scrap material being used, space available and your budget, everything would be taken into consideration by our experts to help you get the best results out of your recycling process.

Multiple models of our balers are available to cater to different types of customer requirements. No matter which one you choose, the highest efficiency and reliability is guaranteed.



What are the different types of scrap that can be processed?

Nearly all types of ferrous and non-ferrous metal scrap can be processed by the balers manufactured by Advance Hydrau Tech. Whether it is sheet metal scrap, car bodies, skeletal metal scrap, pipe, copper tubing, white goods, scrap electronics, aluminum scrap, copper scrap – balers manufactured by us can process anything.



What all do I need to install the machines?

Our team of experts will educate you regarding all minimal prerequisites for installing our balers.


What are the service requirements of the machine?

To ensure safe, correct and up-to-date operation, annual maintenance is required. Our machines will be serviced by our technicians as and when required. Our machines have a long life. Some of our machines installed in the 1970s are still serviced by us.



How much would the machine, its installation, and training cost me?

An Advance Hydrau-Tech consultant will inform you of the costs involved with the installation of the baler you require. It’s our priority to ensure that you get the best return on investment possible.


What are all the skills required to operate a baler manufactured by Advance Hydrau-Tech?
The skills required to operate an Advance Hydrau-Tech baler are minimal. Our machines are easy to operate. Experts from our team will ensure that your key employees are trained in and informed of the workings of our machine. Since our training is simple and quick, anyone can be trained in operating an Advance HydrauTech machine.
